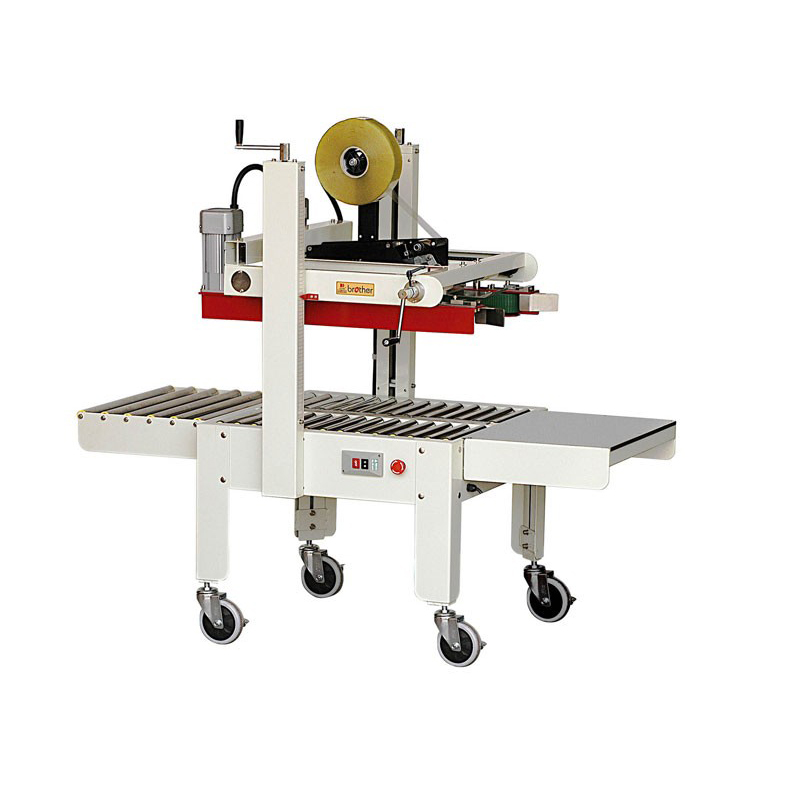

AS123 Carton Sealer

◆ Top and Bottom drive belts(AS223)
◆ Side drive belts(AS123)
◆ 2" Top and Bottom Tape Head
◆ Tape Overlap length can be adjusted from 5~50mm
◆ Manual Top Squeezers


Hotline:
+86-757-8540-2680

Product details

◆ Top and Bottom drive belts(AS223)
◆ Side drive belts(AS123)
◆ 2" Top and Bottom Tape Head
◆ Tape Overlap length can be adjusted from 5~50mm
◆ Manual Top Squeezers
◆ Blade guards
◆ Crank Handle adjustments
◆ Leg height adjustment 240mm
◆ Options: Top & Bottom together sealing(AS223)3 inch Tape
Head; 3 Inch Tape overlap length; Infeed Roller Table
◆ Japanese technical cooperation model & Popular products
sales in Japan market


Model

AS123

Power supply

110V,220-240V/50-60Hz

Power consumption

0.18KVA

Conveyor speed

20m/min.

Min.Packager size

W100×H80mm

Max.Packager size

 W500×H600mm

Width of tape

36mm,48mm,50mm,60mm

Machine size

1580×740×1330mm

Machine weight

145kg
