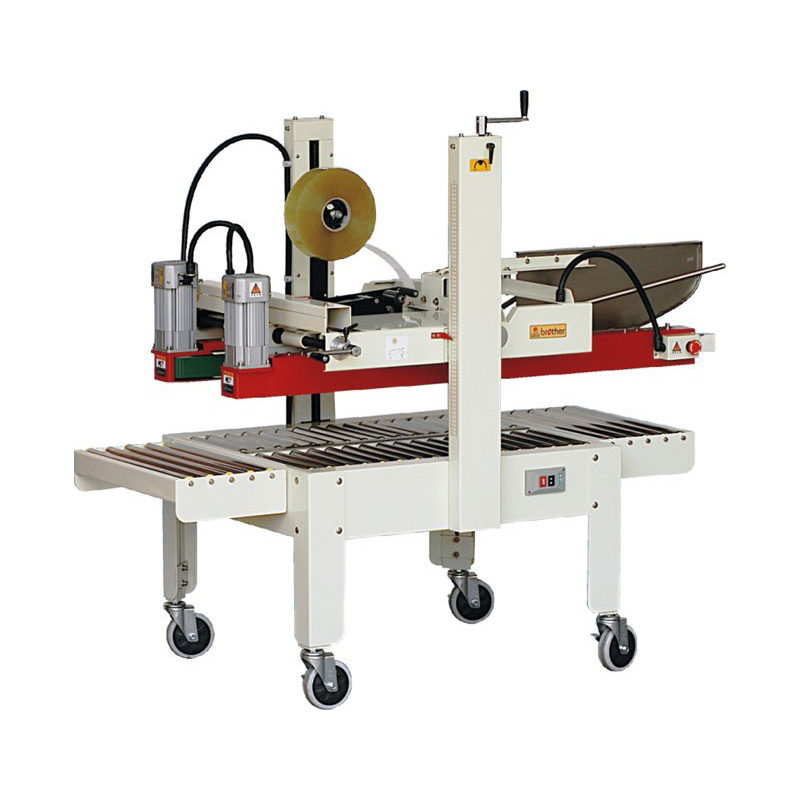

AS323 Carton Sealer
◆ Top and Bottom drive belts, Carton go smoothly
◆ Side drive belts
◆ 2.5" Top and Bottom Tape Head
◆ Tape Overlap length can be adjusted from 5~50mm
◆ Suitable for side open cartons of beverages, floor tiles
◆ Suitable for top & bottom open, small size cartons
◆ Crank Handle adjustments
◆ Leg height adjustment 240mm
◆ Options: 3 inch side sealing are optional
Hotline:
+86-757-8540-2680
◆ Top and Bottom drive belts, Carton go smoothly
◆ Side drive belts
◆ 2.5" Top and Bottom Tape Head
◆ Tape Overlap length can be adjusted from 5~50mm
◆ Suitable for side open cartons of beverages, floor tiles
◆ Suitable for top & bottom open, small size cartons
◆ Crank Handle adjustments
◆ Leg height adjustment 240mm
◆ Options: 3 inch side sealing are optional
|
Model |
AS323 |
|
Conveyor Speed |
20m/min |
|
Max. Packager Size |
L600×W500×H600mm |
|
Min. Packager Size |
L200×W150×H100mm |
|
Width Of Tape |
36mm,48mm,50mm,60mm |
|
Power Supply |
110V,220-240V/50-60Hz |
|
Power Consumption |
0.18KVA |
|
Machine Size |
2000×890×1220mm |
|
Machine Weight |
190kg |
