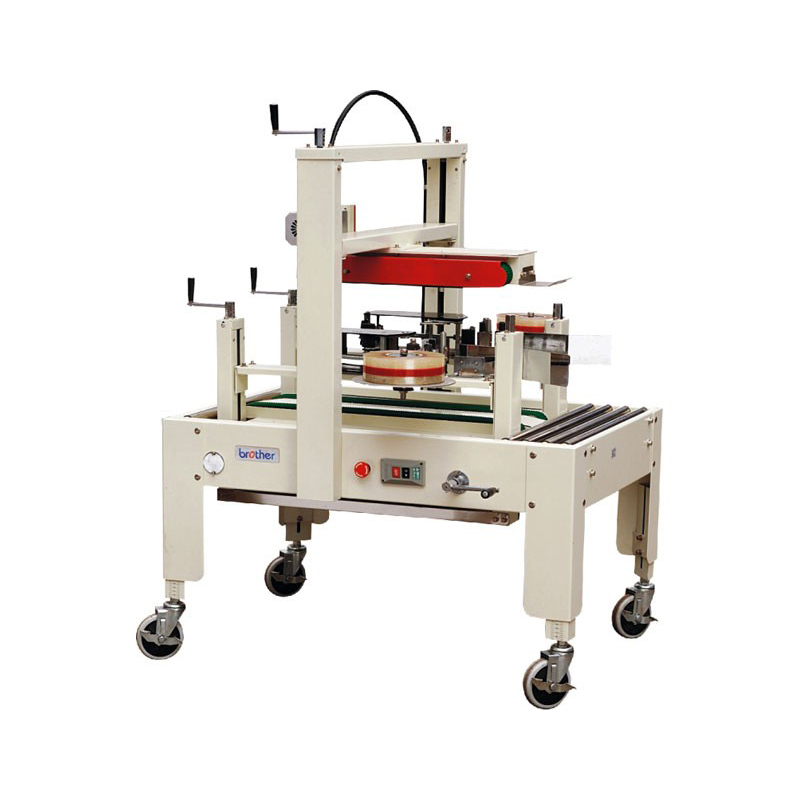

AS423 Carton Sealer
Hotline:
+86-757-8540-2680
◆ Top and Bottom drive belts, Carton go smoothly
◆ Side drive belts
◆ 2.5" Top and Bottom Tape Head
◆ Tape Overlap length can be adjusted from 5~50mm
◆ Suitable for side open cartons of beverages, floor tiles
◆ Suitable for top & bottom open, small size cartons
◆ Crank Handle adjustments
◆ Leg height adjustment 240mm
◆ Options: 3 inch side sealing are optional
Infeed table & Outfeed table
|
Model |
AS423 |
|
Conveyor speed |
20m/min. |
|
Power supply |
110V,220-240V/50-60Hz |
|
Min.Packager size |
W500×H500mm |
|
Max.Packager size |
W150×H70mm |
|
Width of tape |
36mm,48mm,50mm,60mm |
|
Power consumption |
0.18KVA |
|
Machine size |
1100×900×1320mm |
|
Machine weight |
180kg |
