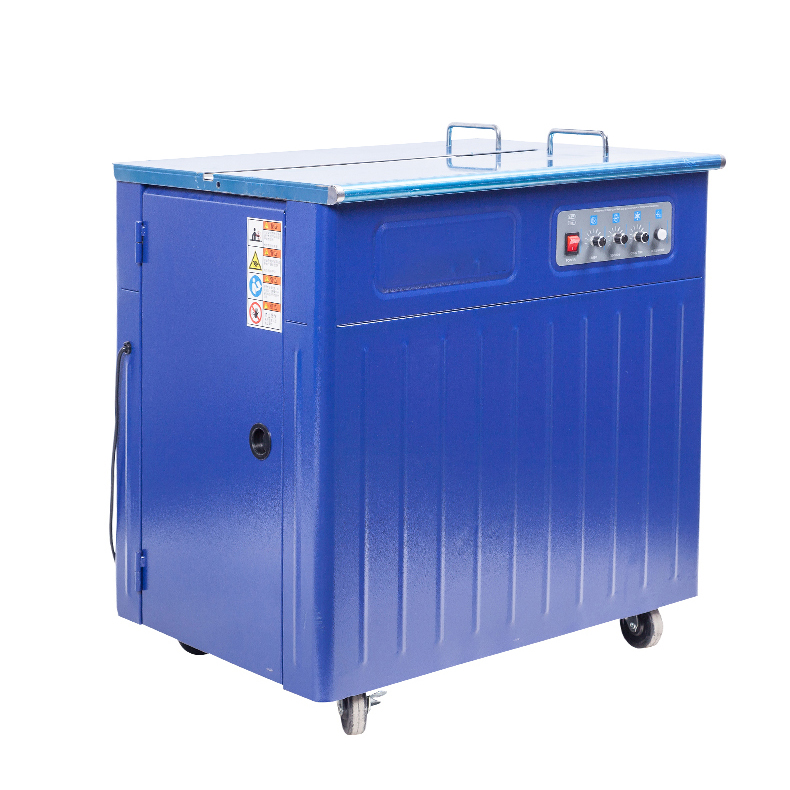

YS-A2C Semi Automatic Strapping Machine

Standard semi automatic strapping machine. It allows the strapping of packages of small to medium production series of all shapes and volumes. Very easy to use and requires very little maintenance Low energy consumption The strip coil is placed inside the machine.

Features:
1. Quiet electric machine and it has the start function to reduce noise and energy consumption.
2. Easy to use and simple to maintain.
3. High tension for heavy packages up to 45 kg.
4. Quick and easy change of strip coil.
5. Electronic adjustment of strapping time and tension.

Hotline:
+86-757-8540-2680

Product details

Specifications:

Product Code	YS-A2H	YS-A2F	YS-A2C	YS-A2L
Applicable Strap	Polypropylene Strap
Strap Size	Width: 5-15mm, Thickness: 0.5-0.8mm
Applicable Strap Spool	Inner Dia.: 200-210mm, Outer Dia.: 400-500mm, Width: 160-190mm
Power Supply	110V/220V, 50/60HZ, 1PH, 0.25KW
Packing Speed	<= 3 second/strap
Tension Range	3-45KGS
Hot-adhering Position	Bottom
Control System	PC Board Control
Working Table Height	760mm	750mm	760mm	460mm
Machine Dimension	755mm x 550mm x 760mm	840mm x 545mm x 750mm	755mm x 540mm x 760mm	755mm x 550mm x 460mm
Machine Weight	N.W.: 70KGS, G.W.: 78KGS	N.W.: 70KGS, G.W.: 80KGS	N.W.: 60KGS, G.W.: 80KGS	N.W.: 60KGS, G.W.: 69KGS
Packing Measurement	780mm x 570mm x 900mm	860mm x 550mm x 840mm	780mm x 570mm x 900mm	760mm x 570mm x 660mm
