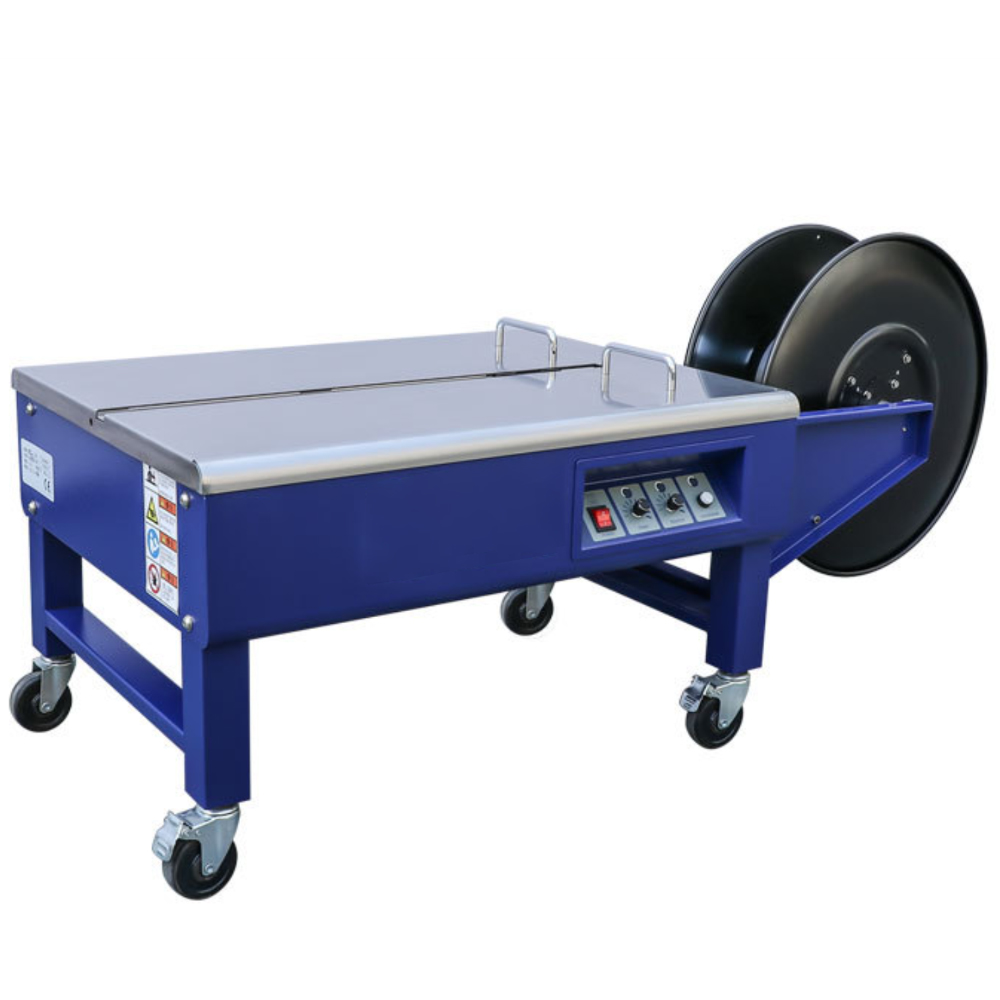

YS-A2L Semi Automatic Strapping Machine

Standard semi-automatic strapping machine. It allows the strapping of packages of small to medium production series of all shapes and volumes. Very easy to use, and requires very little maintenance, low energy consumption. The strip coil is placed inside the machine.

Features:
1. Quiet electric machine and it has the start function to reduce noise and energy consumption.
2. Easy to use and simple to maintain.
3. High tension for heavy packages up to 50 kg.
4. Quick and easy change of strip coil.
5. Electronic adjustment of strapping time and tension


Hotline:
+86-757-8540-2680

Product details


Specifications:

Product Code

YS-A2H

YS-A2F

YS-A2C

YS-A2L

Applicable Strap

Polypropylene Strap

Strap Size

Width: 5-15mm, Thickness: 0.5-0.8mm

Applicable Strap Spool

Inner Dia.: 200-210mm, Outer Dia.: 400-500mm, Width: 160-190mm

Power Supply

110V/220V, 50/60HZ, 1PH, 0.25KW

Packing Speed

<= 3 second/strap

Tension Range

3-45KGS

Hot-adhering Position

Bottom

Control System

PC Board Control

Working Table Height

760mm

750mm

760mm

460mm

Machine Dimension

755mm x 550mm x 760mm

840mm x 545mm x 750mm

755mm x 540mm x 760mm

755mm x 550mm x 460mm

Machine Weight

N.W.: 70KGS, G.W.: 78KGS

N.W.: 70KGS, G.W.: 80KGS

N.W.: 60KGS, G.W.: 67KGS

N.W.: 60KGS, G.W.: 69KGS

Packing Measurement

780mm x 570mm x 900mm

860mm x 550mm x 840mm

780mm x 570mm x 900mm

760mm x 570mm x 660mm
