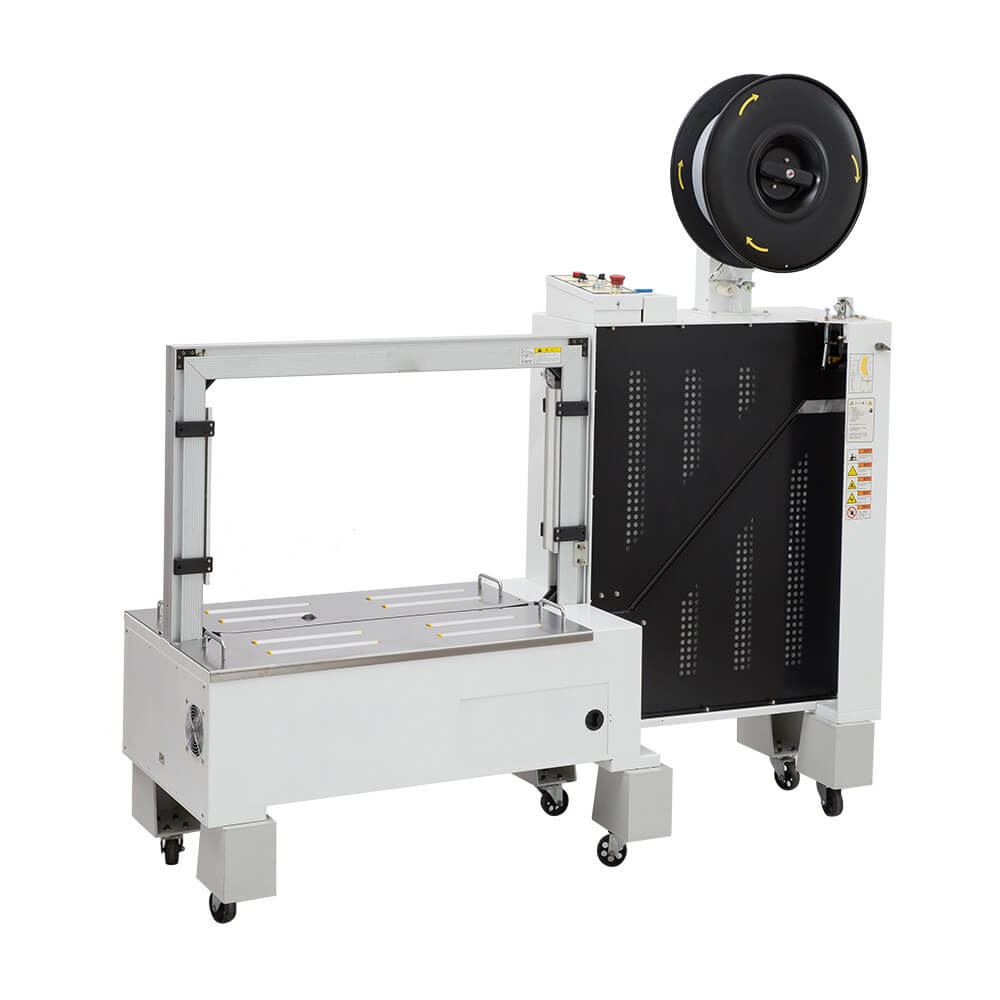

MH-101B Fully Automatic Strapping Machine
MH-101B is the low type of MH-101A, and it is mainly used with the low table grouped equipments
Features:
1. Cycle start standard options - foot switch, push button or table top ball switch.
2. Capable of up to 26 straps/minute.
3. Automatic re-feed mechanism.
4. Loop ejector to eject accidentally actuated straps.
Hotline:
+86-757-8540-2680
Specifications:
|
Product Code |
||
|
Applicable Strap |
Polypropylene Strap |
|
|
Strap Size |
Width: 9mm-15mm, Thickness: 0.55mm-1.0mm |
|
|
Power Supply |
220V-380V, 50/60HZ, 3PH, 0.75KW |
|
|
Packing Speed |
≤ 2.5seconds/strap |
|
|
Tension Range |
5-80KGS |
|
|
Standard Arch Size |
800mm x 600mm (Customized) |
|
|
Minimum Packaging Size |
80mm x 60mm |
|
|
Table Height |
750mm(Customized) |
450mm(Customized) |
|
Machine Size |
140mm x 630mm x 1430mm |
1900mm x 620mm x 1760mm |
|
Machine Weight |
N.W.: 200KGS, G.W.: 220KGS |
N.W.: 320KGS, G.W.: 380KGS |
