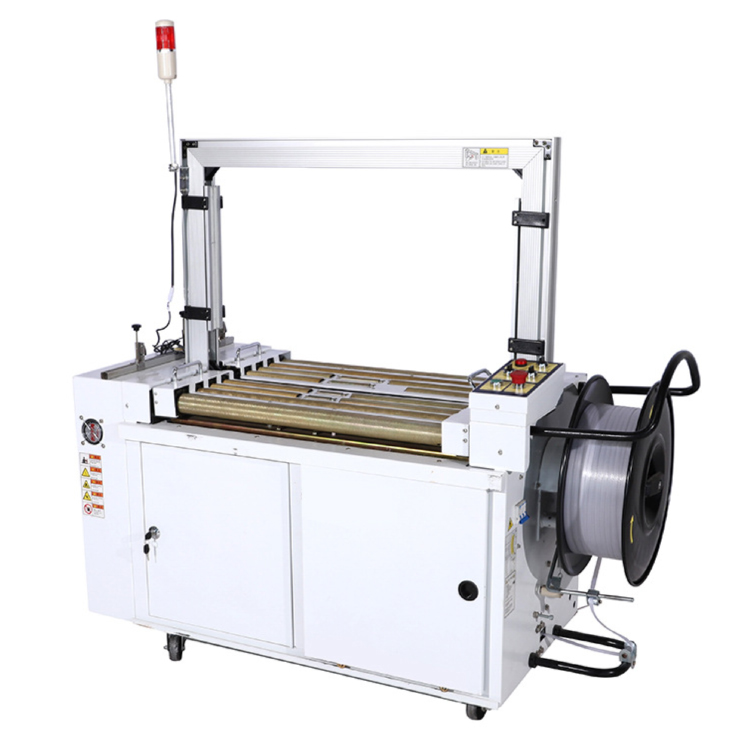

WP-305 High Speed Automatic Strapping Machine

This strapping machine is very versatile. It is used for the rapid bundling of goods or the simple strapping of parcels. The strapping used has a width of 5 mm, making it suitable for smaller packaging.
Application area e.g. Printers, shipping departments in the textile industry, etc.

Features:
1. Infinitely adjustable belt tension
2. Integrated tape storage
3. Energy-saving design – the motor only runs during the strapping process
4. Tape reel for fast tape change
5. Robust construction



Hotline:
+86-757-8540-2680

Product details


Specifications:

 Product Code
 WP-305
 Applicable Strap
 Polypropylene Strap
 Strap Size
 Width: 5mm-6mm, Thickness: 0.5mm-0.8mm
 Strap Spool

 Coil Width: 170mm-190mm, Inner Dia.: 200mm-210mm, Outer Dia.: 400mm-450mm

 Power Supply
 110V-230V, 50HZ/60HZ, 1PH, 0.6KW
 Packing Speed
 50 cycles/min
 Tension Range
 Up to 45KGS
 Hot-adhering Position
 Bottom
 Control System
 PC Board Control
 Arch Size
 650mm x 500mm, Adjustable
 Minimum Packaging Size
 100mm x 60mm
 Table Height
 850mm
 Machine Size
 1170mm x 585mm x 1450mm
 Packing Measurement
 1220mm x 650mm x 1600mm
 Machine Weight
 N.W.: 185KGS, G.W.: 230KGS
