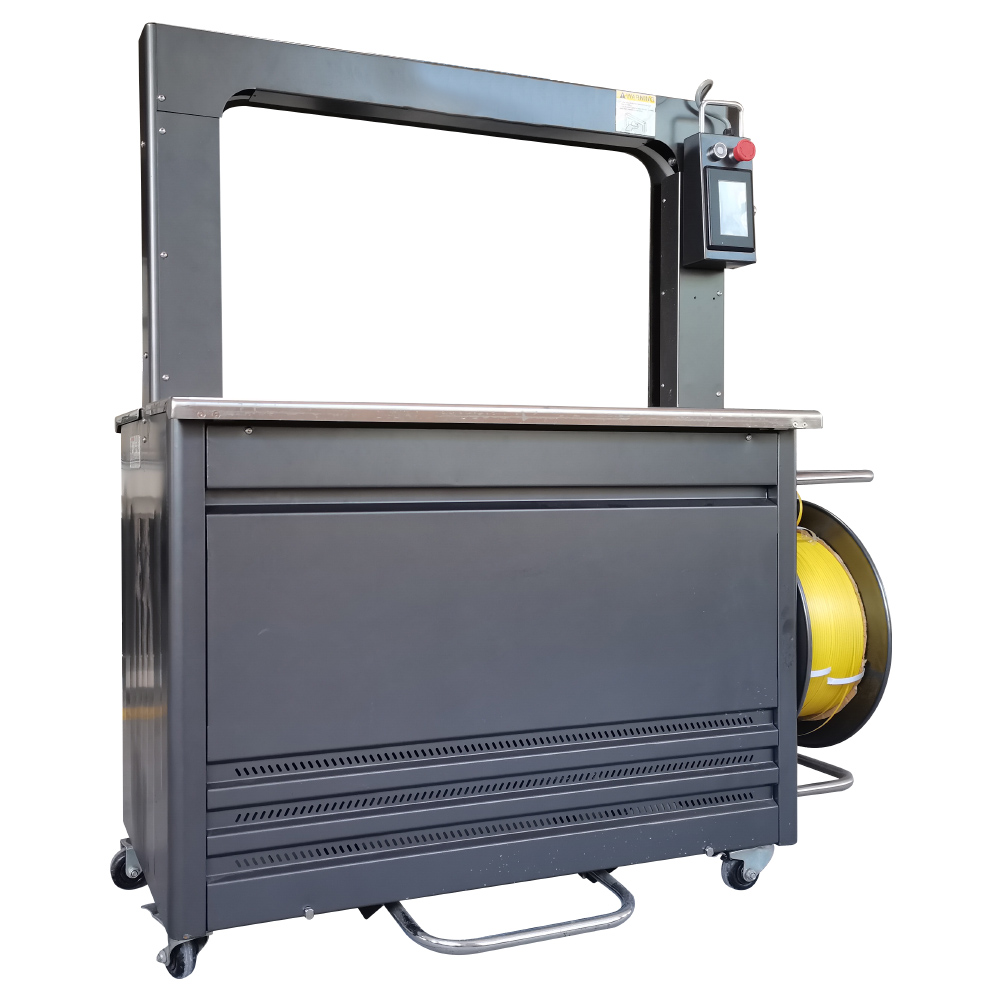

High Speed Automatic Strapping Machine With Touch Screen Control Panel

This high speed automatic strapping machine can use 5mm, 9mm or 12 mm PP strap. Robust and compact, designed for general use and medium-high work volumes. 180 ° rotating control panel to work on both sides of the machine. Bar strapping pedal to facilitate cycle start-up. Available on request with various measures of strapping arches.

Features:
1. Works with DC motors that control each function of the machine.
2. Compared to a traditional strapping machine, more than 30% of mechanical parts have been eliminated.
3. Robust and compact strapping machine, extremely efficient for medium-high working capacity.
4. 180 ° rotating control panel for working on both sides of the machine.
5. Strapping foot pedal to start the working cycle.
6. Available with pneumatic top press

Hotline:
+86-757-8540-2680

Product details

Specificaitons:

Model No.	YS-305X	YS-309X	YS-312X
Strap Width	5mm-6mm	8mm-9mm	11mm-12mm
Strap Thickness	0.5mm-0.8mm	0.5mm-0.8mm	0.5mm-0.8mm
Tension Range	0-45KGS	0-55KGS	0-55KGS
Packing Speed	≤50 cycles/min	≤40 cycles/min	≤40 cycles/min
Loading Bearing	80KGS
Working Table Height	850mm (Customized)
Standard Frame Size	W650mm x H650mm (Customized)
Power	110V-220V, 50HZ/60HZ, 0.6KW, 1PH
Machine Dimension	1180mm x 585mm x 1450mm
Machine Weight	230KGS
