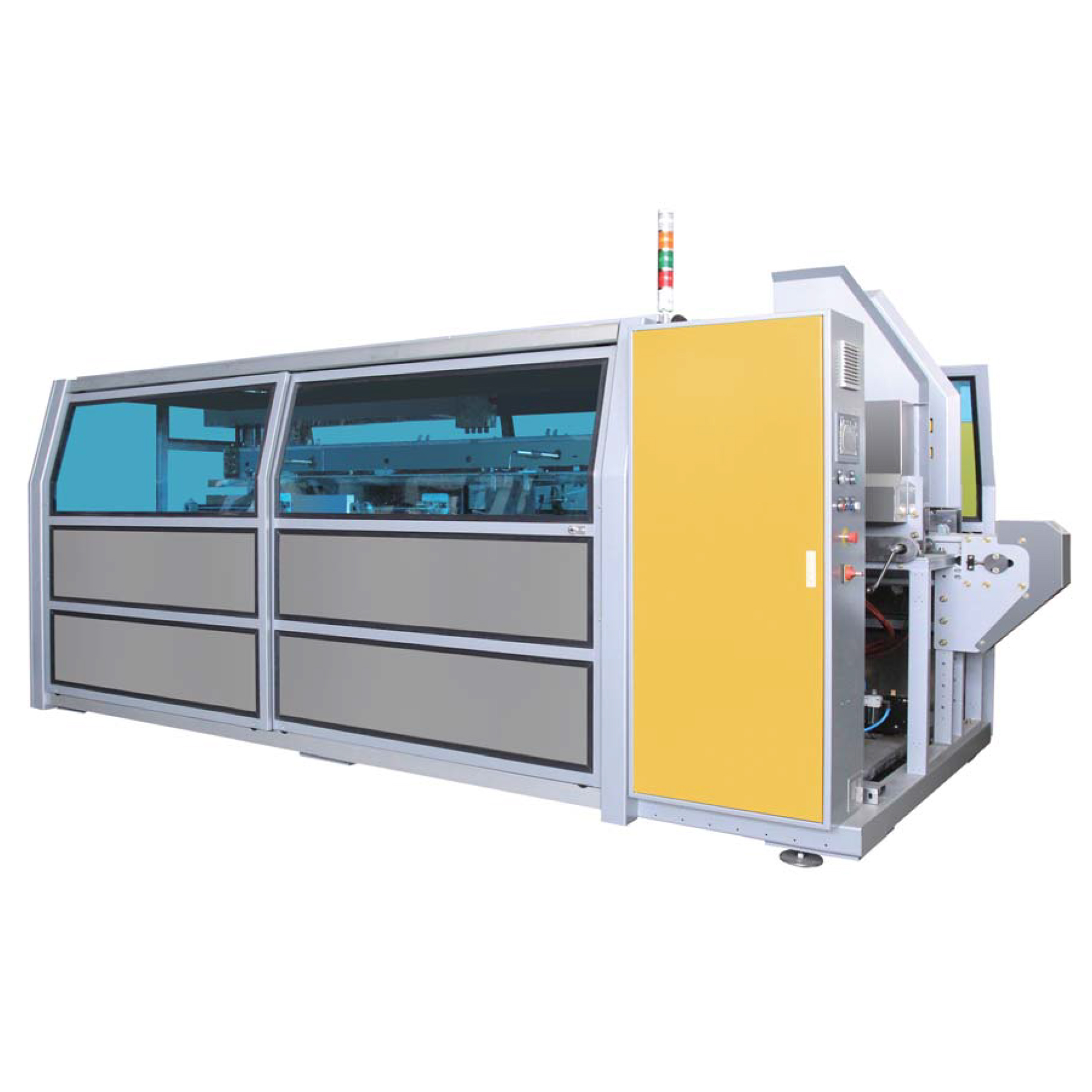

CF-40TH Carton Erector

Case Erectors is used to erect carton which have been shaped automatically and use hot glue or tape as sealing materials to seal the bottom cover of carton.
A stack of corrugated blanks are knocked down and placed into the machine. The blanks are pulled out of the machine one-by-one and formed into cases. The newly formed cases are sealed at the bottom with tape or glue.
This machine can be used for widely range,such as household appliances, spinning, food, general merchandise, medicine, chemical industry, ceramics ,stoker industry and so on.

Hotline:
+86-757-8540-2680

Product details

Specification:

Product Code	CF-40TH
Power	220V-380V, 50/60HZ, 7-8KW, 3PH
Air Pressure	0.4MPa-0.6MPa
Working Speed	20-50 boxes/min (Standard Box)
Working Table Height	1000mm ± 50mm
Machine Dimension	L4800mm x W2200mm x H2200mm
Machine Weight	4000KGS
