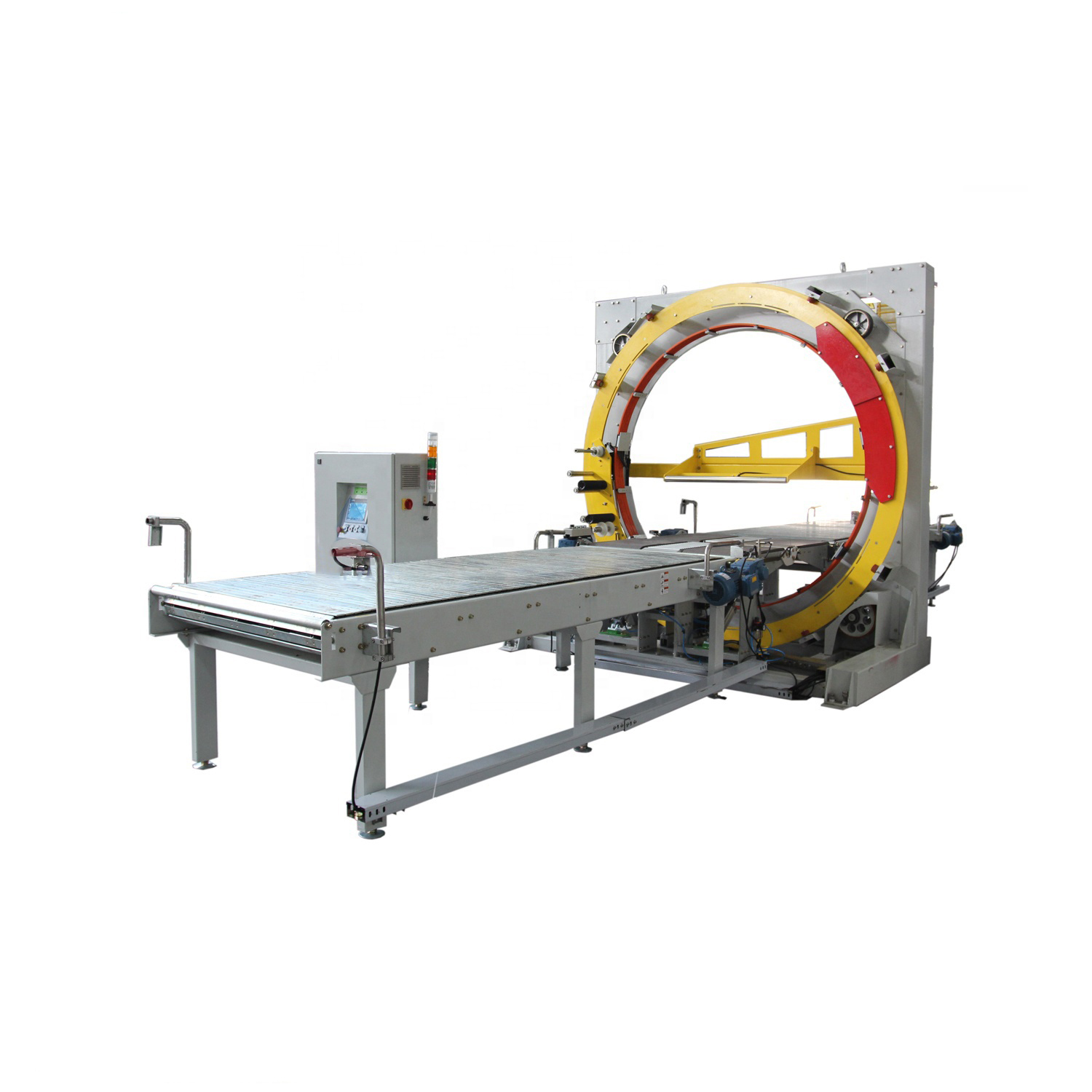

CTR-200BD Orbital Wrapping Machine

CTR-200BD is one of the high quality and high efficient horizontal automatic orbital stretch wrapper machine in high performing and stability. Available in standard as well in customized option. Everything can be wrapped from gilded picture frames, all kinds of furniture, bundles of wooden as well as profiles of various materials up to raw steel packages. The silent features are automatic stretch film application and cut-off system, equipped to be integrated into an automatic op.erating sequence. Operator panel with functional keyboard and display for data input.

Hotline:
+86-757-8540-2680

Product details

Specification:

Product Code	CTR-200BD
Power	380V, 50/60HZ, 3PH
Speed	5-30rpm
Transfer Method	Friction Wheel
Film Width	250mm
Pre-strech Percent	250% (Ajustable)
Table Height	850mm (Ajustable)
Round Packaging Ability	φ900mm-1750mm
Rectangular Packaging Ability	Width: 750mm-1750mm, Max Diagonal: 1950mm
Machine Dimension	L1630mm x W2725mm x H2725mm
Machine Weight	1260KGS
