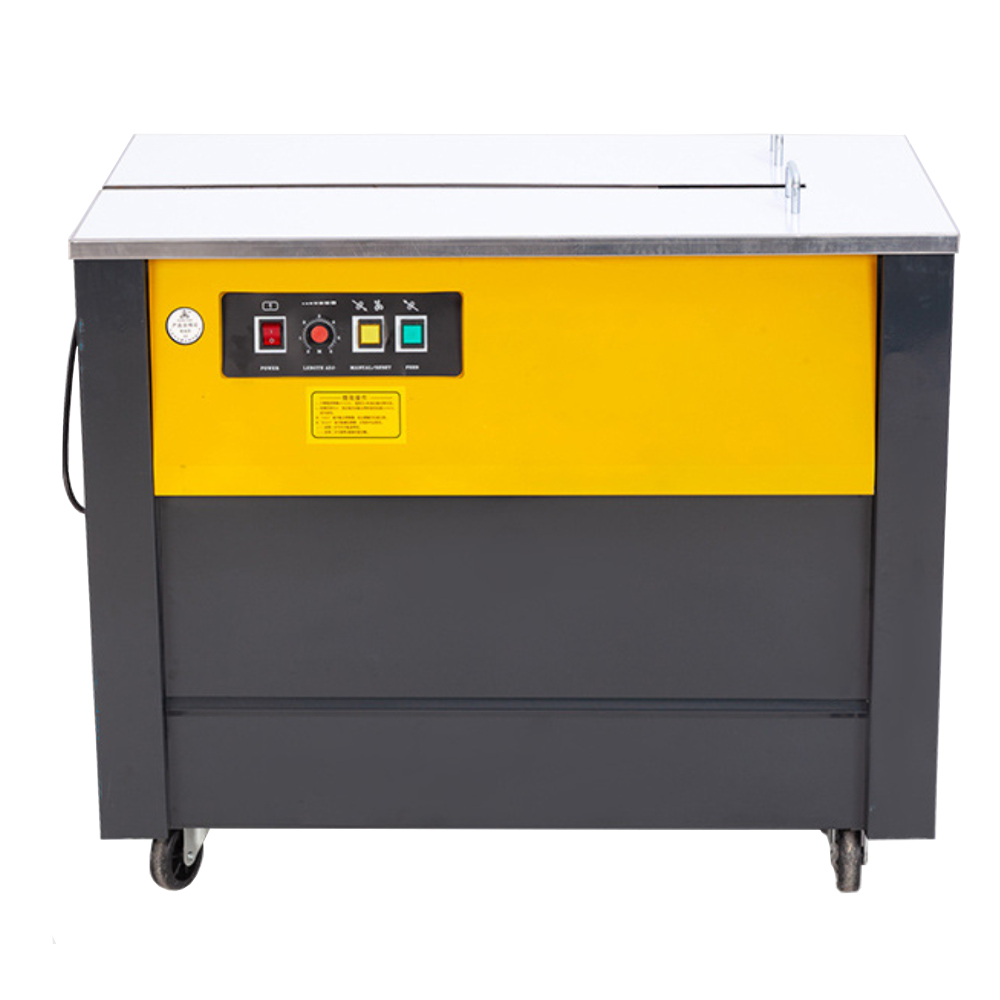

JW-8020 Semi Automatic Strapping Machine

The JW-8020 has a strapping capacity of up to 60kg and can be used for straps ranging from 9 to 15mm wide. Instant heating systems allow for a strapping speed of 1.5 seconds. It also has a power-saving mode that automatically turns it off after 60 seconds of nonusage.

Features:
1. Strap at quick speed and with high efficiency.
2. Takes 1.5 seconds for strapping a polypropylene strap.
3. Machine ready for strapping after 5 seconds of starting the machine.
4. 60 seconds to enter into Stand-by mode.
5. Electromagnetic clutch for quick and smooth operation.
6. Coupled-axle transmission with quick speed, low noise, low wear and tear.

Hotline:
+86-757-8540-2680

Product details

Specifications:

Product Code	JW-8020	JW8021	JW-8022	JW-8028
Applicable Strap	Polypropylene Strap
Strap Size	Width: 9-15mm, Thickness: 0.5-0.6mm
Power Supply	110V-220V, 50/60HZ, 1PH, 0.65KW
Packing Speed	1.5 seconds/strap
Tension Range	5-60KGS
Control System	PC Board Control
Hot-adhering Position	Bottom	Bottom	Bottom	Side
Working Table Height	735mm	480mm	735mm	420-900mm
Machine Dimension	895mm x 565mm x 735mm	1510mm x 565mm x 480mm	895mm x 565mm x 735mm	675mm x 880mm x 1650mm
Machine Weight	90KGS	80KGS	90KGS	140KGS
