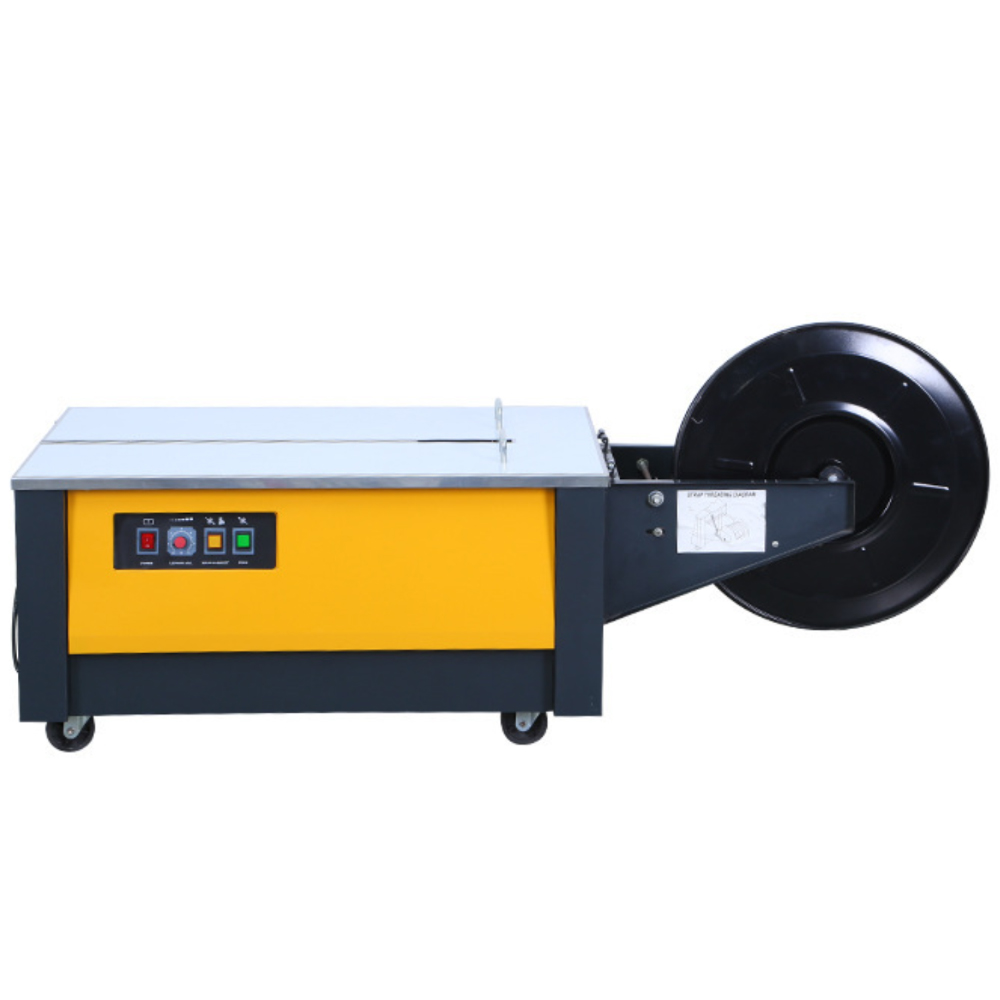

JW-8021 Semi Automatic Strapping Machine
The JW-8021 has a strapping capacity of up to 60kg and can be used for straps ranging from 9 to 15mm wide. Instant heating systems allow for a strapping speed of 1.5 seconds. It also has a power-saving mode that automatically turns it off after 60 seconds of nonusage.
Features:
1. Strap at quick speed and with high efficiency.
2. Takes 1.5 seconds for strapping a polypropylene strap.
3. Machine ready for strapping after 5 seconds of starting the machine.
4. 60 seconds to enter into Stand-by mode.
5. Electromagnetic clutch for quick and smooth operation.
6. Coupled-axle transmission with quick speed, low noise, low wear and tear.
Hotline:
+86-757-8540-2680
Specifications:
|
Product Code |
JW-8020 |
JW-8021 |
JW-8022 |
JW-8028 |
|
Applicable Strarp |
Polypropylene Strap |
|||
|
Strap Size |
Width: 9-15mm, Thickness: 0.5-0.6mm |
|||
|
Power Supply |
110V-220V, 50/60HZ, 1PH, 0.65KW |
|||
|
Packing Speed |
1.5 seconds/strap |
|||
|
Tension Range |
5-60KGS |
|||
|
Control System |
PC Board Control |
|||
|
Hot-adhering Position |
Bottom |
Bottom |
Bottom |
Side |
|
Working Table Height |
735mm |
480mm |
735mm |
420-900mm |
|
Machine Dimension |
895mm x 565mm x 735mm |
1510mm x 565mm x 480mm |
895mm x 565mm x 735mm |
675mm x 880mm x 1650mm |
|
Machine Weight |
90KGS |
80KGS |
90KGS |
140KGS |
