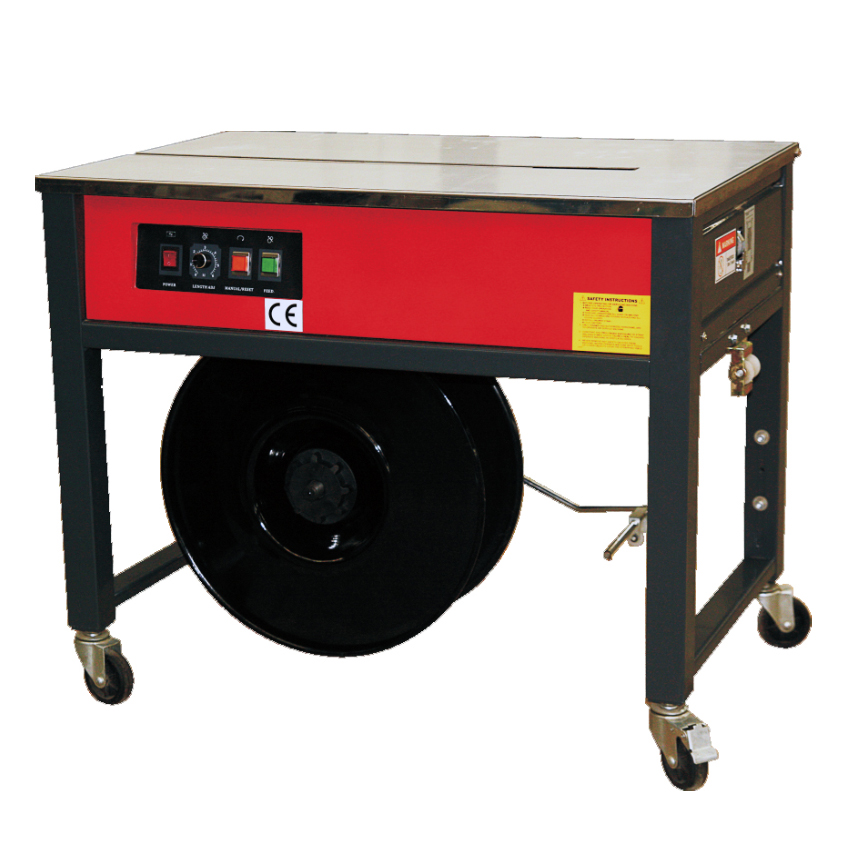

JW-8022 Semi Automatic Strapping Machine

A semi-automatic open frame machine that features an electric tension detector and an adjustable height to customize based on the machine operator.
The JW-8022 has a strapping capacity of up to 60kg and can be used for straps ranging from 9 to 15mm wide. Instant heating systems allow for a strapping speed of 1.5 seconds. It also has a power-saving mode that automatically turns it off after 60 seconds of nonusage.

Features:
1. The height of the machine can be adjusted to suit the height of the operator and working environment.
2. Pre-heat time 5 seconds.
3. 60 seconds to enter into Stand-by mode.
4. Electronic tension detector.




Hotline:
+86-757-8540-2680

Product details


Specifications:



Product Code

JW-8020

JW-8021

JW-8022

JW-8028

Applicable Strap

Polypropylene strap

Strap Size

Width: 9-15mm, Thickness: 0.5-0.6mm

Power Supply

110V-220V, 50/60HZ, 1PH, 0.65KW

Packing Speed

1.5 seconds/strap

Tension Range

5-60KGS

Control System
PC Board Control

Hot-adhering Position

Bottom

Bottom

Bottom

Side

Working Table Height

735mm

480mm

735mm

420-900mm

Machine Dimension

895mm x 565mm x 735mm

1510mm x 565mm x 480mm

895mm x 565mm x 735mm

675mm x 880mm x 1650mm

Machine Weight

90KGS

80KGS

90KGS

140KGS
