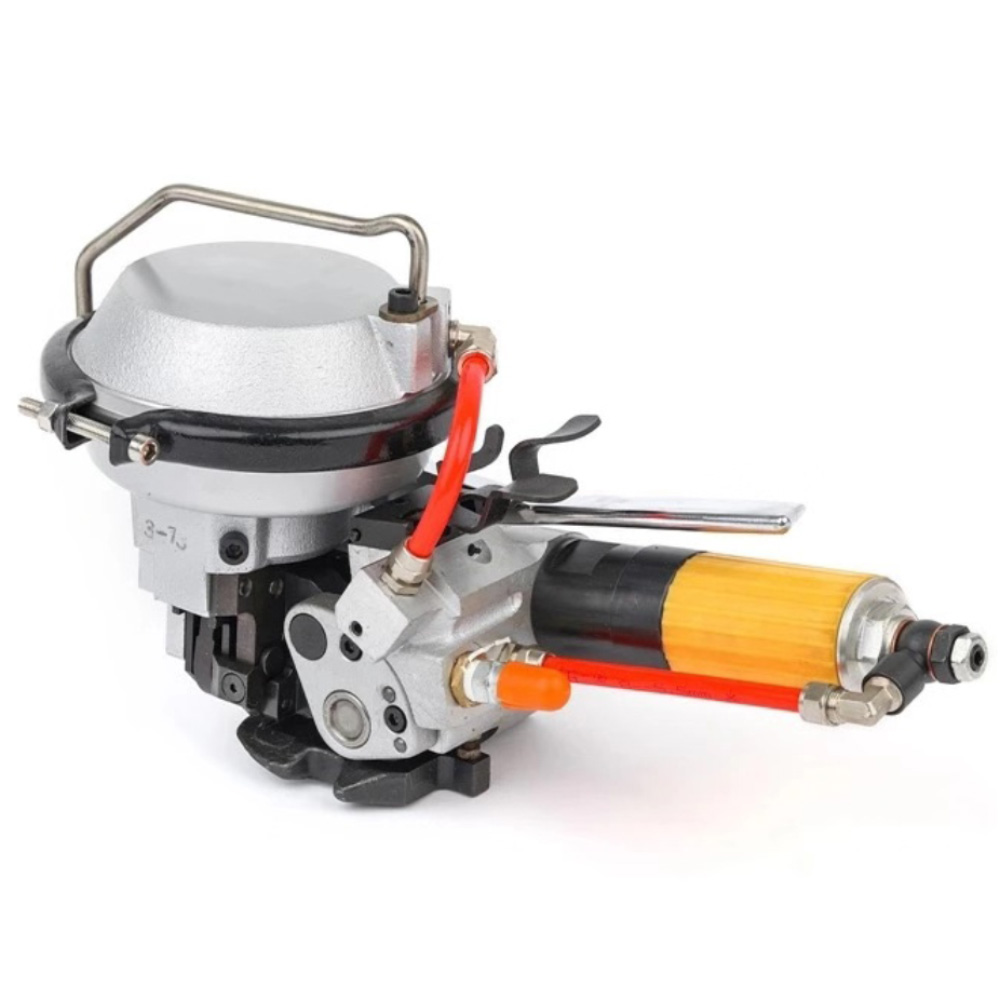

GZD-19B Pneumatic Steel Strapping Tool
This pneumatic strapping tool GZD-19B is designed for strapping round or irregularly shaped objects with steel strap. The joint is made by one notching the seal. The strapping tool works with strap and steel seal of the width of 19mm.
Features:
1. Pneumatic steel strapping tool with a seal, designed for round and small items.
2. Very light and compact, easy to use, and set.
3. Strong and reliable to use in industrial medium/light application, is available with two different tension motors and for three sizes of strap 13-19mm.
Hotline:
+86-757-8540-2680
Specifications:
|
Product Code |
Applicable Strap |
Closure Type |
Strap Thickness |
Strap Width |
Max Tension |
Air Pressure |
Dimension |
Weight |
|
KCL-19/32 |
Steel Strap |
Buckle |
0.8-1.2mm |
19mm/32mm |
>=9.5KN |
0.4-0.6Mpa |
380 x 110 x 130mm |
4.8KGS |
|
KCS-19/32 |
Steel Strap |
Buckle |
0.8-1.2mm |
19mm/32mm |
>=16.8KN |
0.4-0.6Mpa |
240 x 110 x 300mm |
3.5KGS |
|
KZ-19/32B |
Steel Strap |
Buckle |
0.8-1.2mm |
19mm/32mm |
>=9KN |
0.4-0.6Mpa |
460 x 270 x 360mm |
15.5KGS |
|
GZD-19B |
Steel Strap |
Buckle |
0.4-0.8mm |
13-19mm |
>=4KN |
0.4-0.6Mpa |
320 x 220 x 280mm |
5.0KGS |
